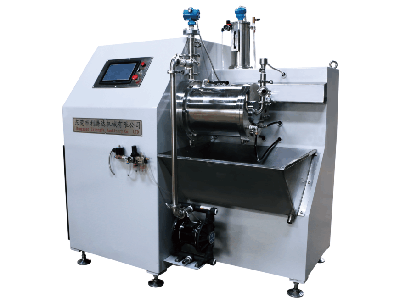

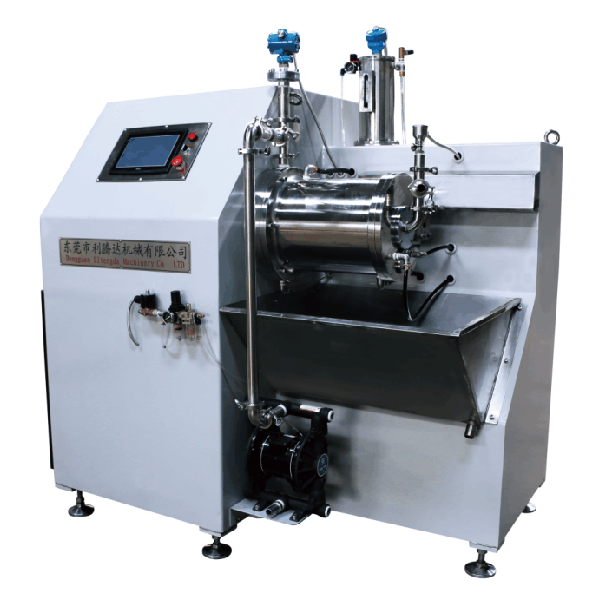

LTD1022BW棒銷渦輪納米砂磨機

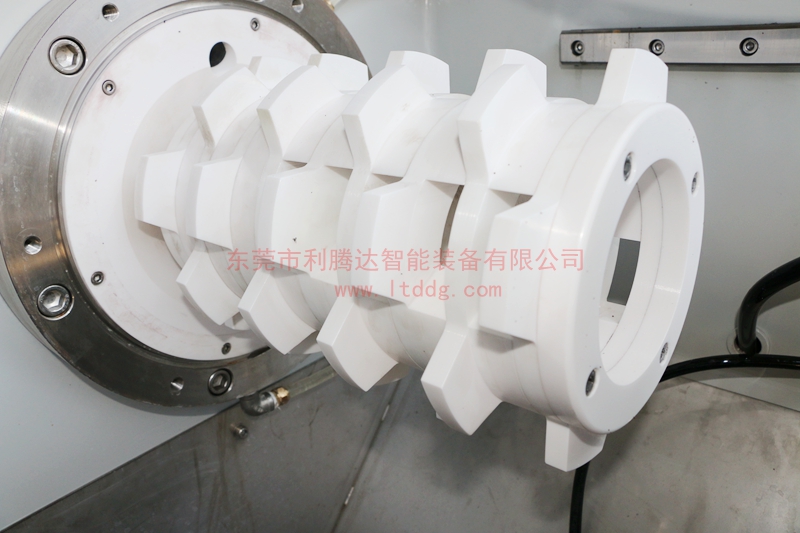

1、帶銷釘的渦輪結構轉子，具有強剪切力、動力分布均勻、研磨腔內物料和介質流動性好等特點，能實現對物料的高效研磨分散，研磨細度1μm—50nm；

2、采用離心式分離器，具有過流面積大、分離效果好、適用壽命長等優點；

3、使用耐磨損、耐腐蝕的集裝式雙端面機械密封，并配置了機封潤滑冷卻監測和壓力平衡機構，機封裝拆更容易，維修更方便；

4、變頻調速，可根據物料的需求選擇相應研磨轉速，達到理想研磨效果；

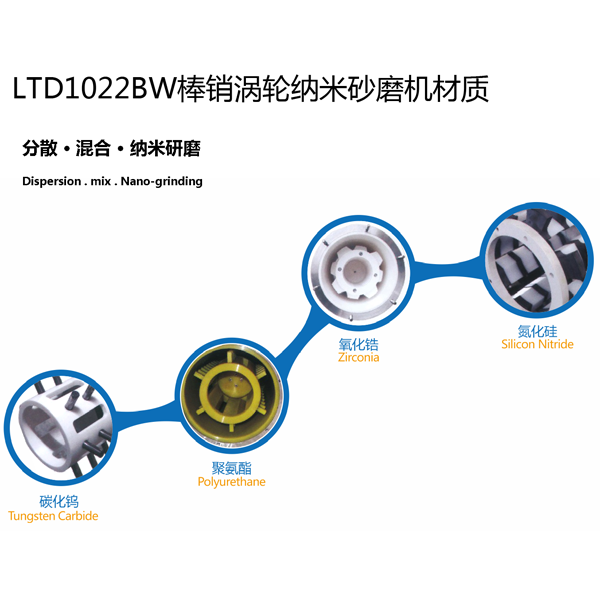

5、研磨腔體材質可以選擇碳化鎢、聚氨酯、氧化鋯、氧化硅、碳化硅等，適合不同客戶需求。

◆Turbine rotor with pins structure,with strong shear force, power distribution, good liquidity of media and materials in grinding chamber and other characters,to achieve efficient material dispersion, grinding fineness 1μm ~ 50 nm;

◆Adopt centrifugal separator, with the advantages of large  flow area, good separation and long using time etc ;

◆Use the wear and corrosion resistant cartridge double mechanical seal, and configure the mechanism of mechanical seal lubrication and cooling monitoring and pressure balance, easy assembly and disassembly, easy maintenance;

◆Frequency control, users can select the best grinding speed according to the needs of the material, to  achieve the best grinding results;

◆The grinding chamber material can select tungsten carbide, polyurethane, Zirconia, silica, silicon carbide, etc., to meet the different customers’needs .

納米顏料、陶瓷墨水、磁性材料、氧化鋁材料、電子漿料、硅酸鋯材料、熱轉印噴墨、磷酸鐵鋰、醫藥、化妝品、非金屬礦粉體、其它新型納米材料。

nano pigment, ceramics ink, magnetic materials, aluminum materials, electronic pulp, zirconium silicate materials,thermal transfer inkjet inks, lithium iron phosphate, pharmaceuticals, cosmetics, non-metallic mineral powder and other new nano materials.

技術參數

TECHNICAL PARAMETER
